- Wide operating vole-4.8V to 6.8V
- High-precision metal gears with hard anodizing
- High sensitivity and responsiveness, flexible operation
- CNC aluminium and plastic shell, waterproof rubber seals screws
- Perfectly for robots, al arms, climbing cars and remote control toys
DS3218MG Servo can be commonly used in robots, al arms, climbing cars and remote control toys. The main features are fast heat dissipation, big torque high compatibility, sensitive and responsive ect. Good choice for university professors and students who are interested in developing software for robot parts.
Specifications:
Brand: DSSERVO
Model: DS3218MG
Item Name: DS3218MG Digital Servo
Dead Band: 3μsec
Operating Vole: 6V~8.4Volts
Operating Speed (6V): 0.16sec / 60° at no load
Operating Speed (8.4V): 0.14sec / 60° at no load
Stall Torque (6V): 19 kg/cm (263.8oz/in)
Stall Torque 8.4V): 21.5 kg/cm (298.5 oz/in)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Cefication: Yes
Weight: 60g
Size: 40.5 * 40 * 20mm
Note:
The digital servo has a wide of uses, pls according to your own requirements to choose battery. Recommended vole: 6V-8.4V.
There could be a few deviations due to manual measurement, thank you for your attention
Package information:
Package size: 6.8 * 6.8 * 4.3cm / 2.68 * 2.68 * 1.7in
Package weight: 80g / 2.82oz
General box package

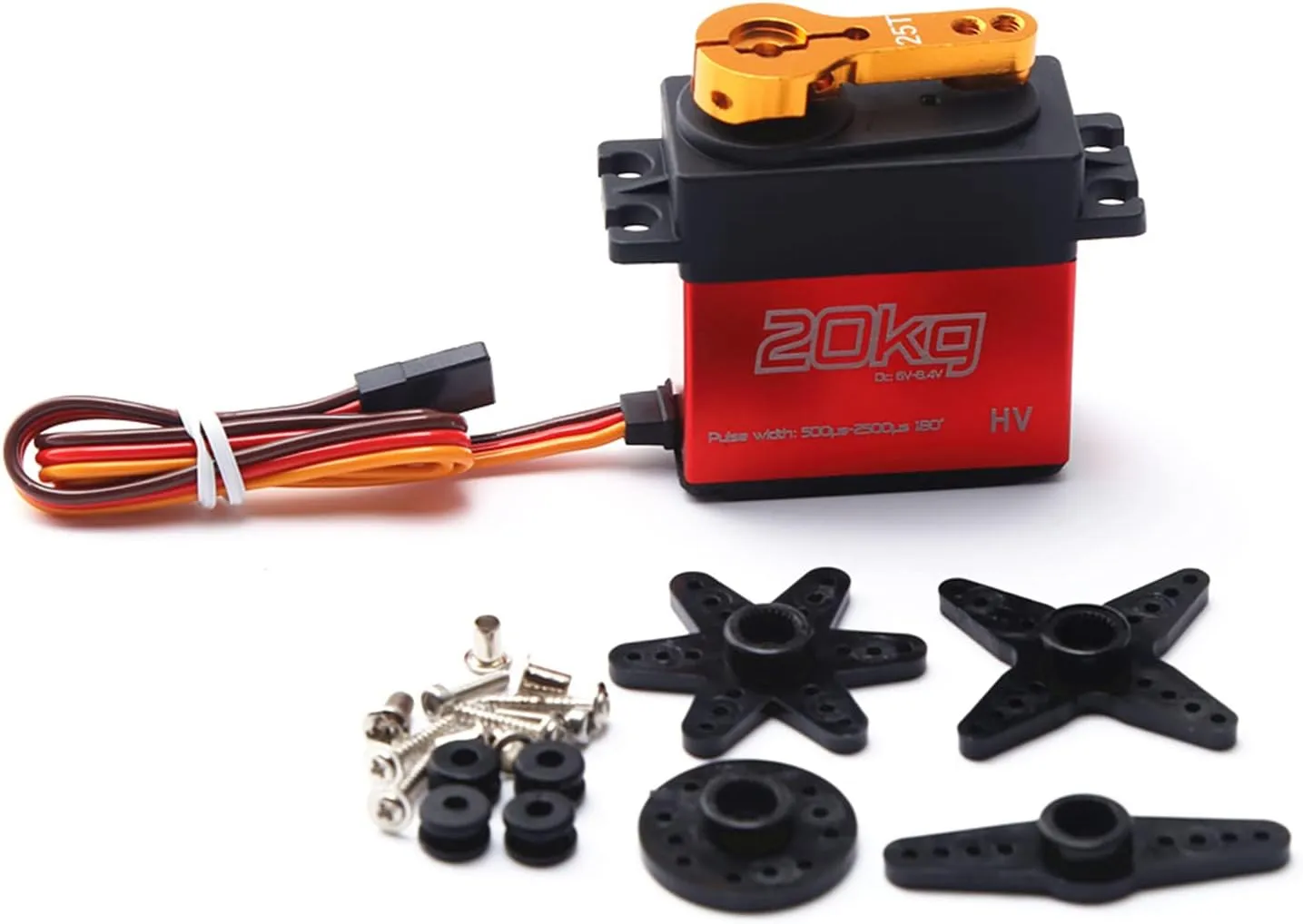

Package list:
1 * DS3218MG Digital Servo
1 * 25T Adjustable Metal Servo Arm
