- Ideal replacement - this sensor directly replaces the original sensor on specified vehicles and applications
- Durable construction - this sensor is specifically designed to withstand pressure and temperature extremes for reliable performance and accurate measurement
- Cost-effective solution - offers original equipment fit and function at a competitive price
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
- Note: Please make sure that the parts, connectors and plugs on our pictures are the same as your old products before ordering, to avoid wrong purchases, 100% undergo a strict quality tested before shipping. If the Engine Oil Pressure Sensor Switch fails simply contact us for a replacement or refund, we will reply you within 12 working hours.
Quality is life, safety is always the first. All sensors have been tested at high and low temperature and programmed many times to ensure the absolute reliability of quality. They are of high quality and low price. You are welcome to purchase and use
Desciption:

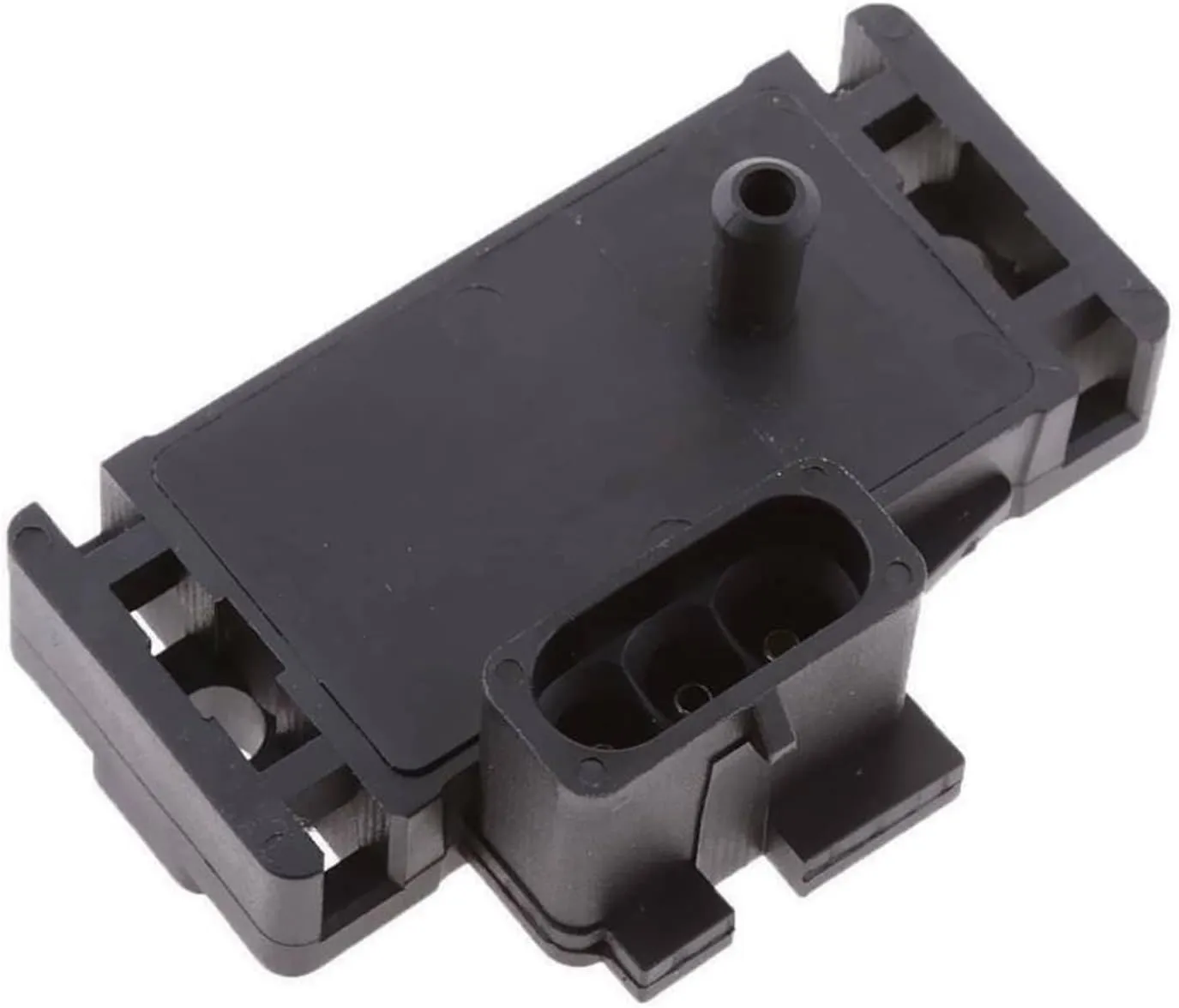

3 Bar MAP sensors can measure up to 44.1psi, which translates to 29.7psi boost from a Turbo/supercharger. Supplied complete with 3 Pin Plug
These are top quality 100% tested electronic sensors manufactured to the highest quality standards.
The ECU uses: the manifold absolute pressure (MAP) sensor to determine the absolute pressure (not the relative to atmospheric pressure) of the air inside the intake manifold and the atmosphere (barometric pressure).
Pinouts are:
Pin A -- Ground
Pin B -- Sensor output
Pin C -- 5 volts
High Precision Chip
Tested to 1% precision
10Kpa to 300kpa Pressure Range
Ideal for Turbo and other forced induction applications
Temperature Range -40 deg C to 125 Deg C
Heat & Chemical Resistant Material
Also Suits
Kms ; ;ECU
Go-tech ECU
Cems ; ECU
Haltech ECU
Megasquirt ECU
Package Includes:
1* MAP Sensor
Post note: Before ordering this product, you must confirm that this component is suitable for your vehicle! Use the manufacturer's part number above and match it with your existing car parts, or contact your dealer to facilitate the use of that part number. Many car manufacturers replace car parts in the middle of the year. Any car sensor looks similar, but slightly different.!!!! thank you!!!
