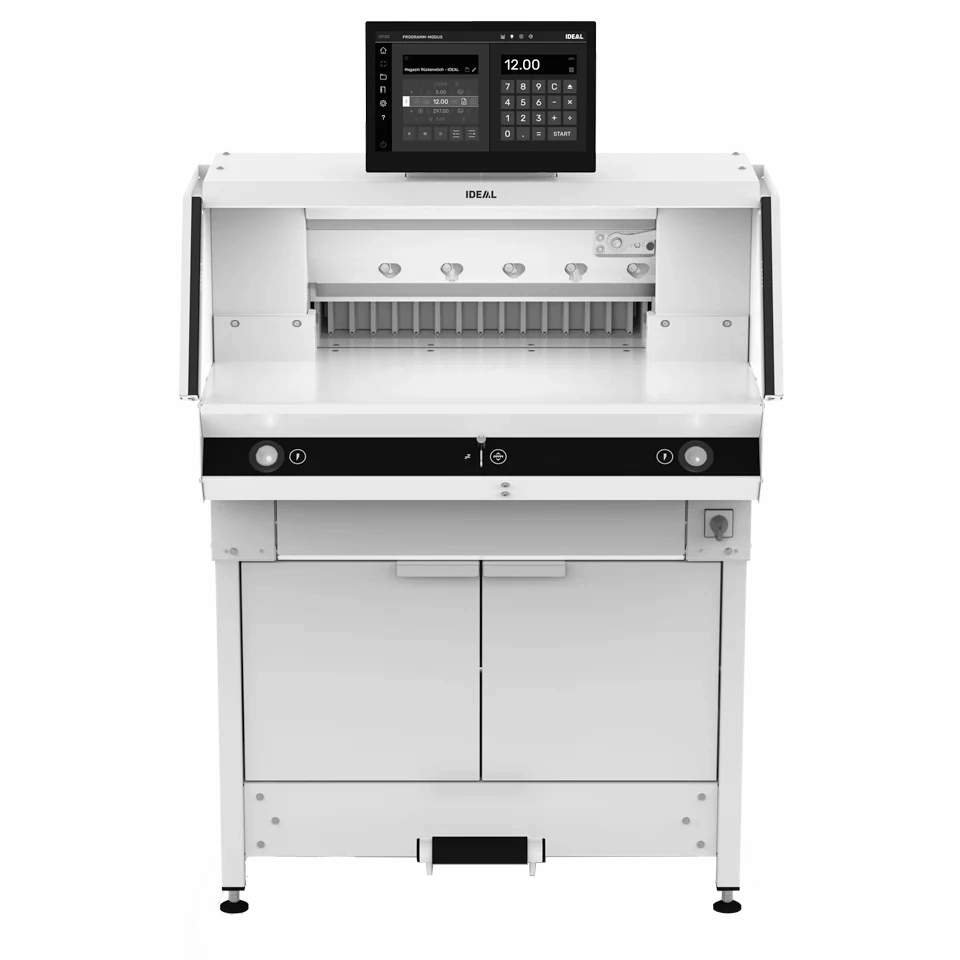

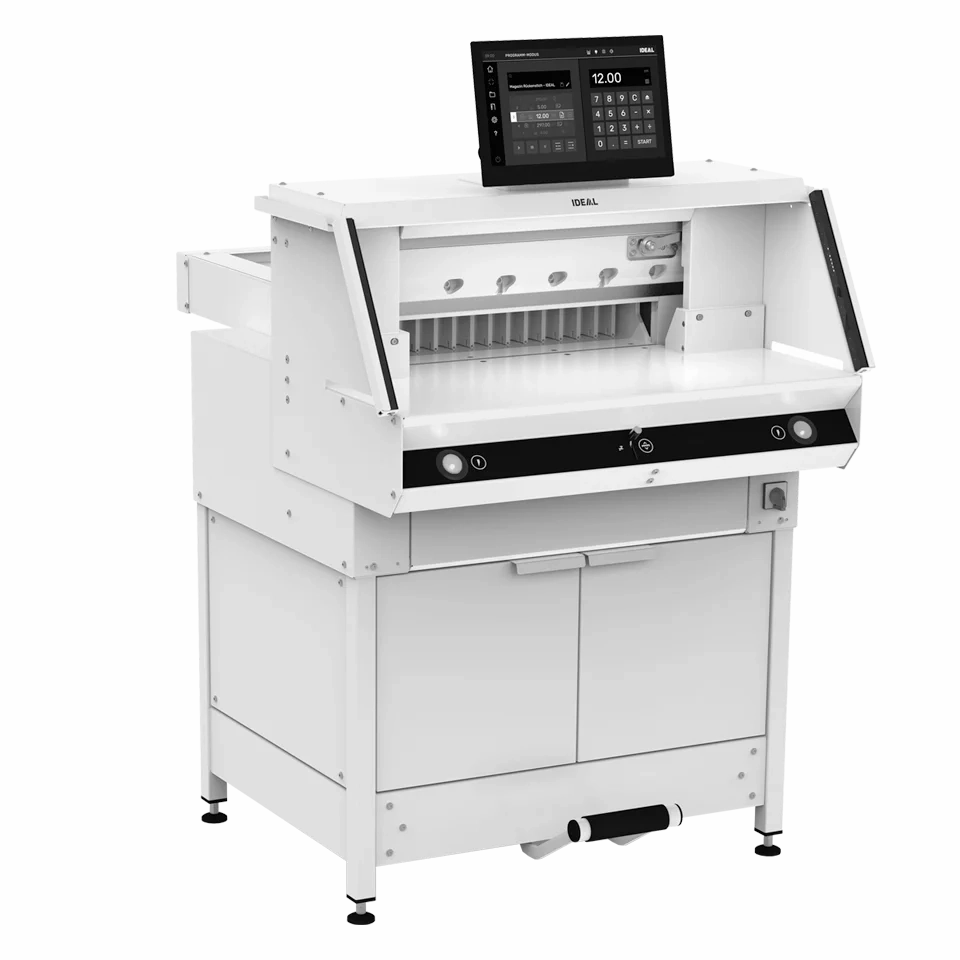

Programmable Hydraulic Paper Cutter
The Triumph Speedcut 56 is a next-generation programmable hydraulic paper cutter engineered to deliver maximum precision, faster workflow, and smart safety in commercial cutting operations. Featuring a 15.6" multi-touch display, electro-mechanical blade drive, and ergonomic mechanical foot clamping system, itβs built for professional print shops that require fast, reliable performance and intuitive operation.
Key Features
π· 22" cutting width and 3.15" cutting height

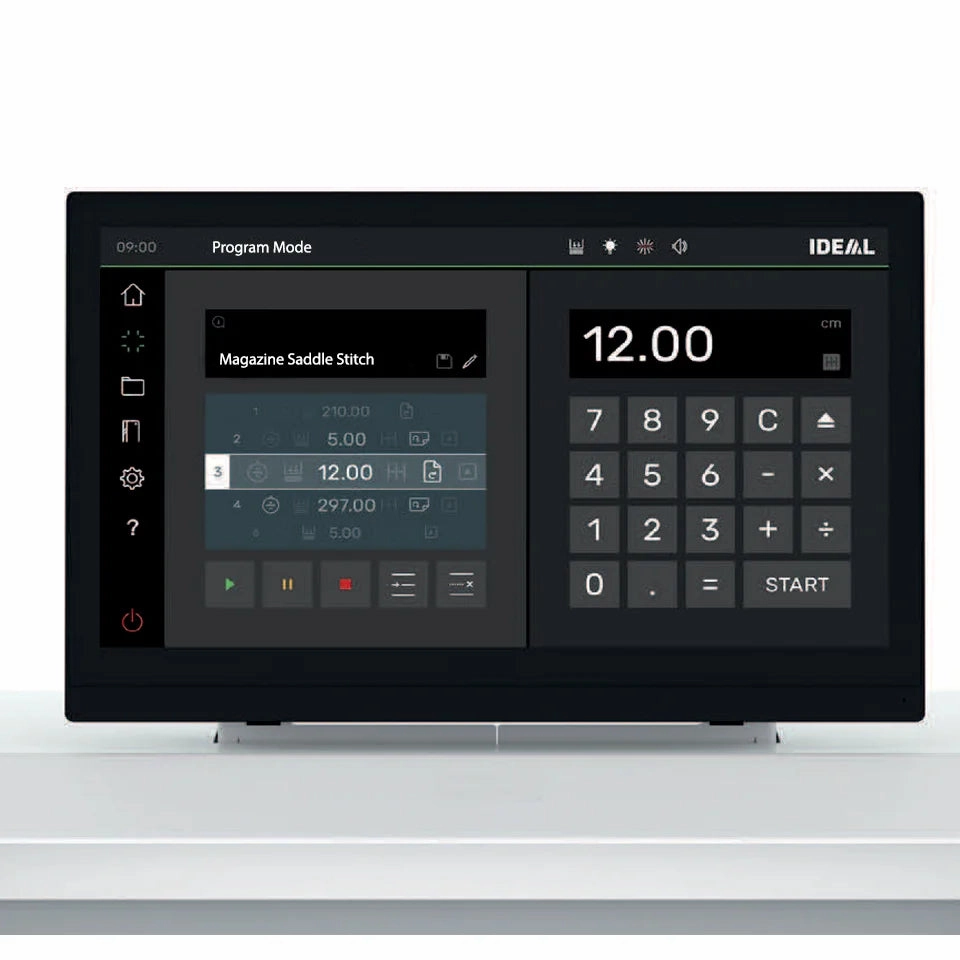

π· 15.6" multi-touch display with swipe control and tiltable screen

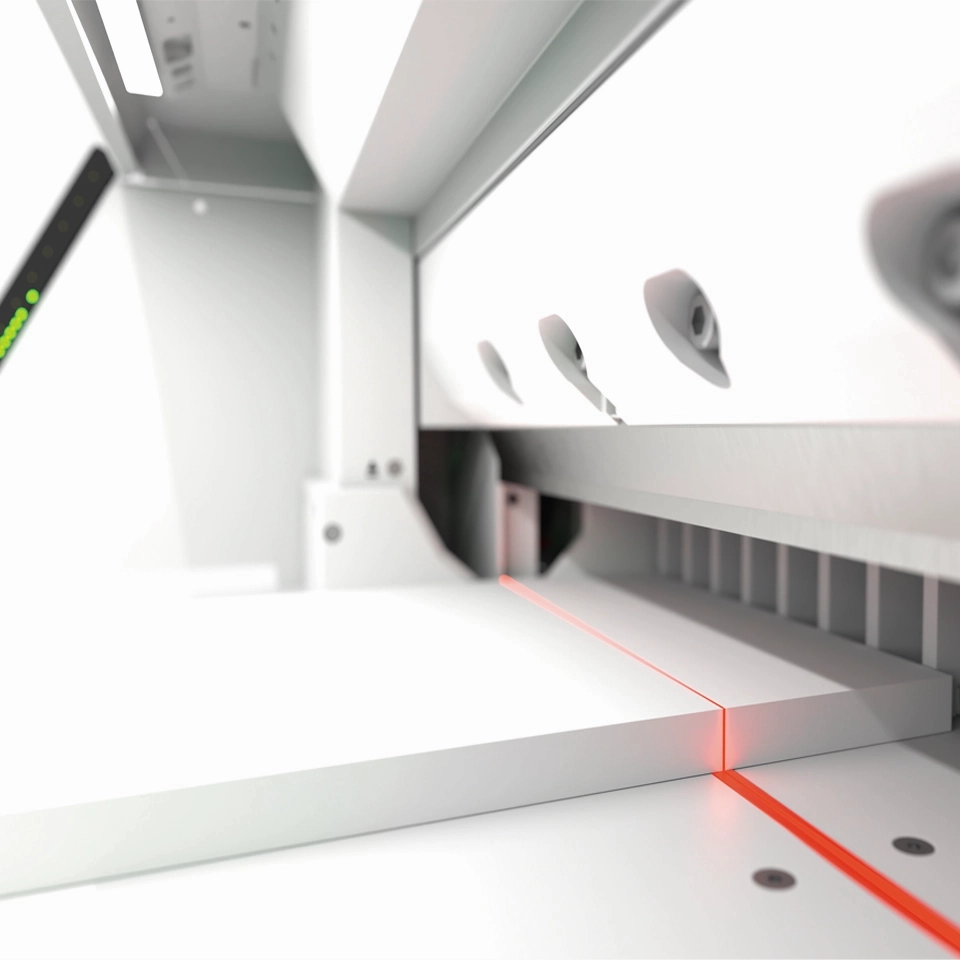

π· Mechanical foot clamp for safe pre-clamping and line indication
π· Hydraulic clamp with programmable pressure control
π· 40% faster clamping/cutting and 100% faster backgauge than prior models

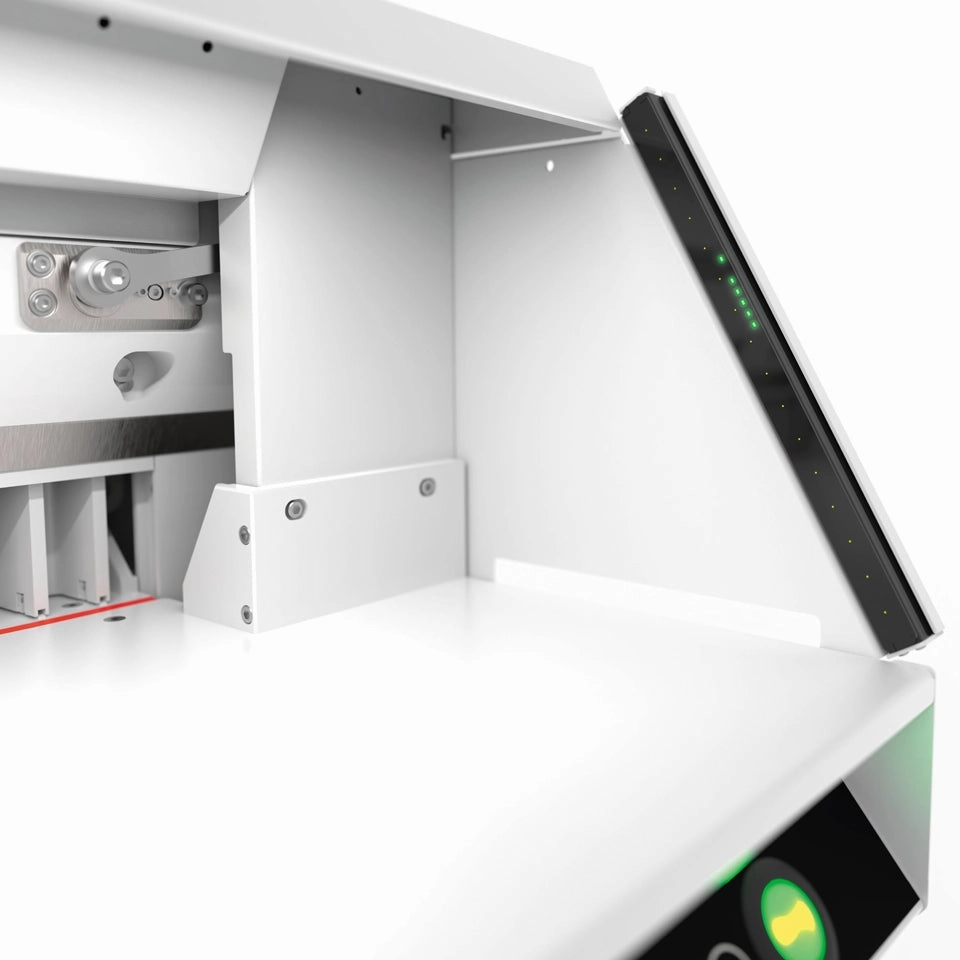

π· IR light beam safety curtain and full SCS safety package
Specifications
| Specification | Detail |
|---|---|
| Cutting Width | 22" (559 mm) |
| Cutting Height | 3.15" (80 mm) standard, 3" (76 mm) with false clamp |
| Narrow Cut | <0.6" (15 mm) |
| Table Depth | 22" (559 mm) |
| Table Height | Adjustable: 37"β39" (940β990 mm) |
| Electrical Requirements | 120V, 60Hz, 20A dedicated line |

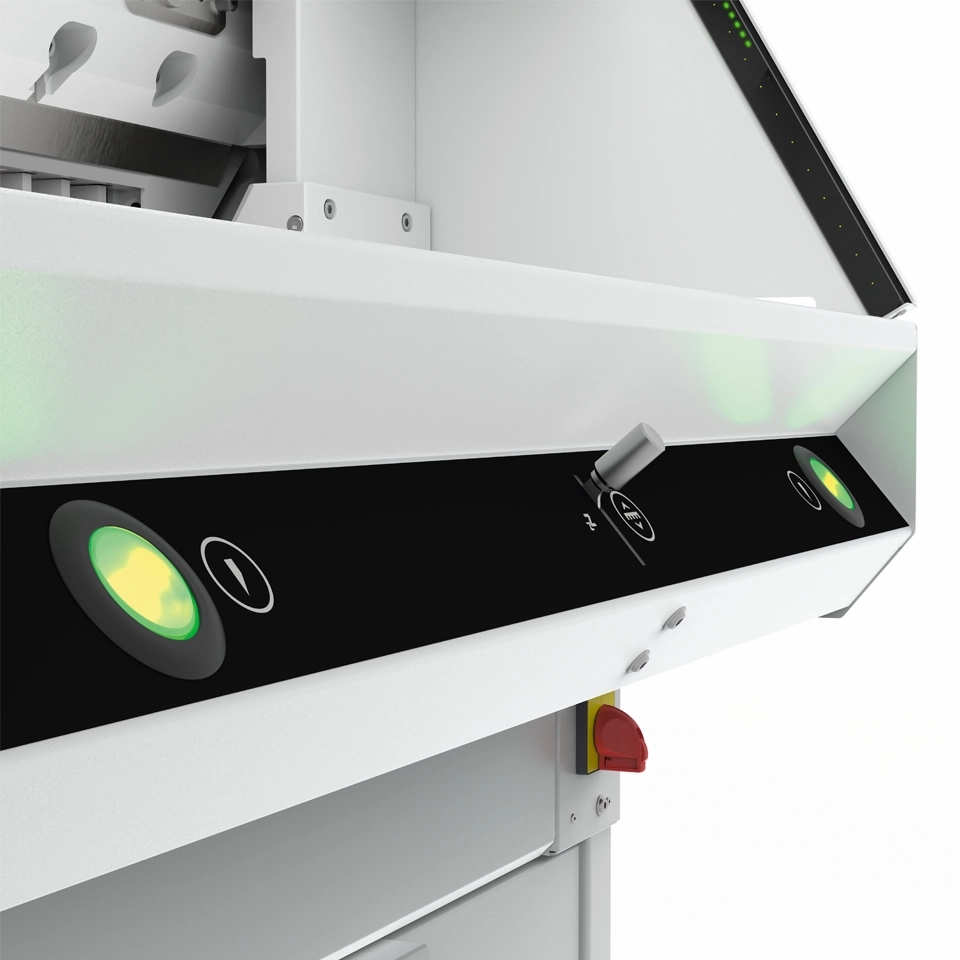

| Safety System | IR light curtain two-hand cut control (EASY-TOUCH) |
| Display | 15.6β tilt-adjustable multi-touch screen |
| Construction | Electro-mechanical blade / hydraulic clamp / steel base |
| Clamp Pressure | Infinitely adjustable, 50% more than previous models |
Applications
π Precision paper cutting for print production
π Book blocks, covers, and trimmed materials
π¦ Bulk trimming for finishing workflows
π Cut sheets for packaging, signage, and retail
Available Options
π Side tables for extended work surface
π Replacement blade and cutting sticks
π False clamp for sensitive stocks
π Dedicated pallet jack compatible stand (included standard)
Benefits
β
Dramatically increases cutting speed and throughput
β
Safer, smarter cutting with full-featured digital UI
β
Compact footprint with ergonomic adjustments
β
Built-in tool storage and secure PIN code access
β
Designed for fast setups and minimal downtime
