- 12 - 24 VAC/VDC operation
- 1,010 Users (Output #1: 1000 users, Output #2: 10 users)
- 2 Form C relays, each rated 1 Amp @ 30VDC
- Each relay has programmable output time from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use

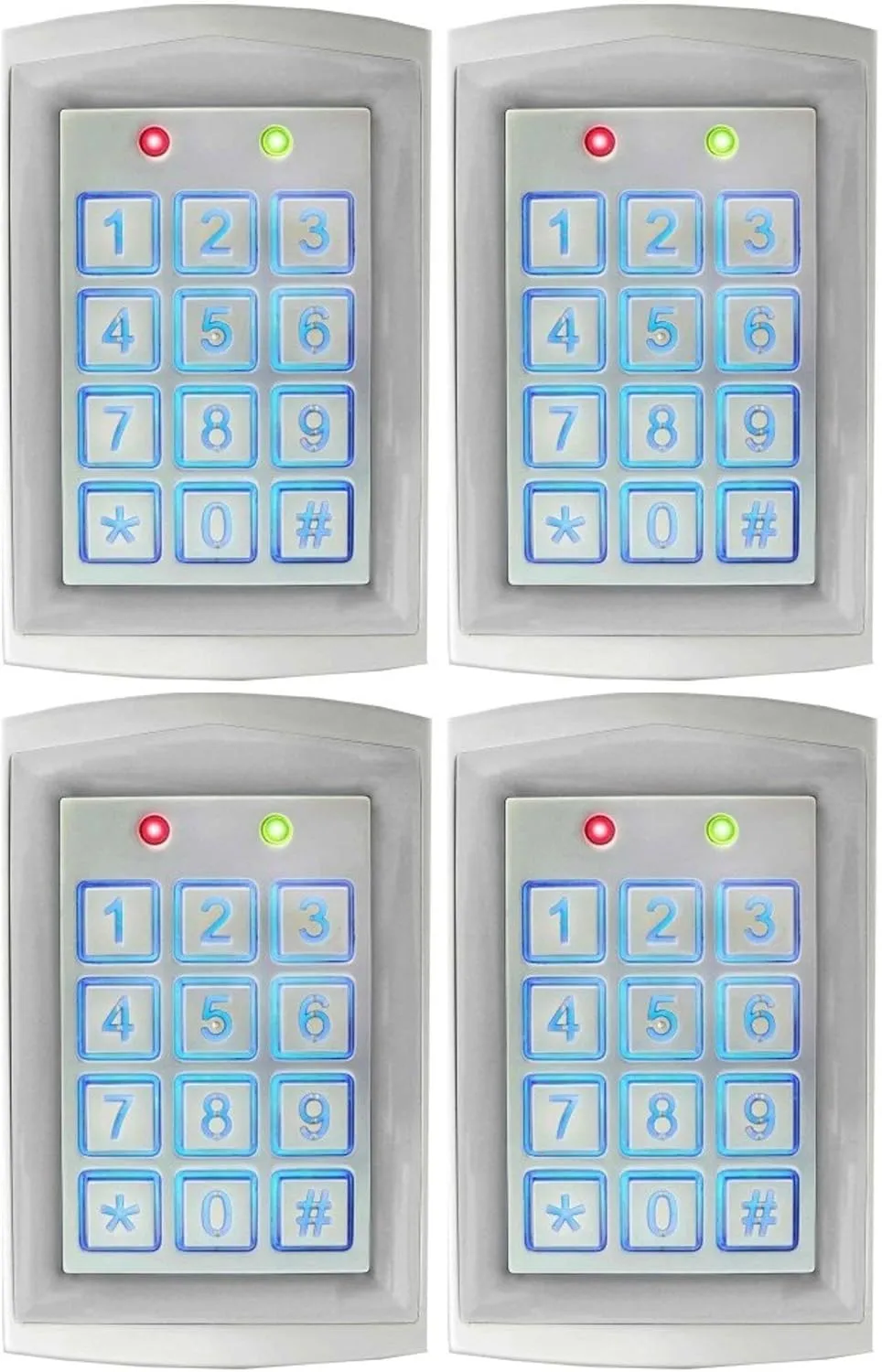

Seco-Larm SK-1323-SDQ Pack of 4 Enforcer Sealed Housing Weatherproof Stand-Alone Digital Access Keypads; 12-24 VAC/VDC Operation; 2 Multi-colored Status LEDs; Backlit Keys
Key Features:
- 12 - 24 VAC/VDC operation
- 1,010 Users (Output #1: 1000 users, Output #2: 10 users)
- 2 Form C relays, each rated 1 Amp @ 30VDC
- Each relay has programmable output time from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- Two multi-colored status LEDs
- Able to mount to a single-gang back box
- All features are programmed directly from the keypad, no need for an external programmer
- EEPROM memory protects programmed information in case of power loss
- Optical tamper for added security
- Circuitry is potted with epoxy for outdoor use
- IP65 Weatherproof rating, rugged aluminum construction
Specifications:
- Number of User Codes: Up to 1010
- Operating Voltage: 12~24 VAC/VDC
- Current Draw - Standby: 64mA@12VDC
- Current Draw - Active: 92~120mA@12VDC
- Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
- IP Rating: Weatherproof IP65
- Egress Inputs: 2, N.O. Ground
- Door Sensor Input: N.C. Ground
- Tamper Sensor: Optical
- Keypad LED Life: 60,000 hours (over 6.8 years)
- Overall Dimensions: 4.72 x 2.99 x 0.86 inches
- Weight: 1.12 pounds
