- All Weather Performance: This brushless ESC is built to excel in diverse environmental conditions. It features and capabilities that enhance its functionality regardless of the weather. For longevity, be sure to remove the cooling fan before submerging in water to avoid rusting of connectors, ensuring consistent performance.
- User-Friendly Programming: The setup process for your RC brushless motor electric speed controller is straightforward. With an external programming port included, you can easily connect to a programming card for customization. Adjusting settings to align with your specific requirements makes it accessible for both newcomers and experienced users.
- Enhanced Guard Features: Safety is a priority with this brushless ESC, which comes equipped with multiple protective features. It includes low voltage cutoff, overheat guard, throttle signal loss guard, and motor lock guard. These mechanisms work together to protect your RC vehicle and electronic components, promoting longevity and optimal functionality.
- Performance Customization: Gain precise control over your RC vehicle with advanced features like proportional braking and adjustable maximum braking force. The drag brake force adjustment and variable acceleration settings allow for fine-tuning. Tailor the ESC to accommodate different vehicle types, tires, and track conditions for enhanced driving experiences.
- Good Compatibility: This brushless ESC is well-suited for various 1/10 vehicles, including short course trucks and buggies. It features a built-in switch mode BEC that ensures compatibility with a wide range of servo systems, providing an output of 3A at 5.85V. Enhance your RC setup with this versatile ESC for improved performance across multiple applications.
Specification
Item Type: Brushless ESC
Material: Aluminium Alloy
Model: WSDT-60A
Continuous Current: Fwd. 60A, . 60A
Peak Current: Fwd. 180A, . 180A
Resistor: 0.001Ω
Applicable Car: For 1:10 On Road, Off Road, Buggy
Battery: 4-9 NiMH, 2-3S LiPo
Motor Limit:
For 2S Lipo or 6 Cell NiMH Batteries:
On Road: 3656 size or smaller engine KV <6000
For Off Road, Buggy: 3656 size or smaller motor KV<4000
For 3S Lipo or 9 Cell NiMH Batteries:
On Road: 3656 size or smaller motor KV<4000
Off Road, Buggy: 3656 size or smaller motor KV<3000
BEC Output: 5.85V 3A
Cooling Fan:
Direct from battery, no regulation required
Stock fan works with 2S and 3S Lipo

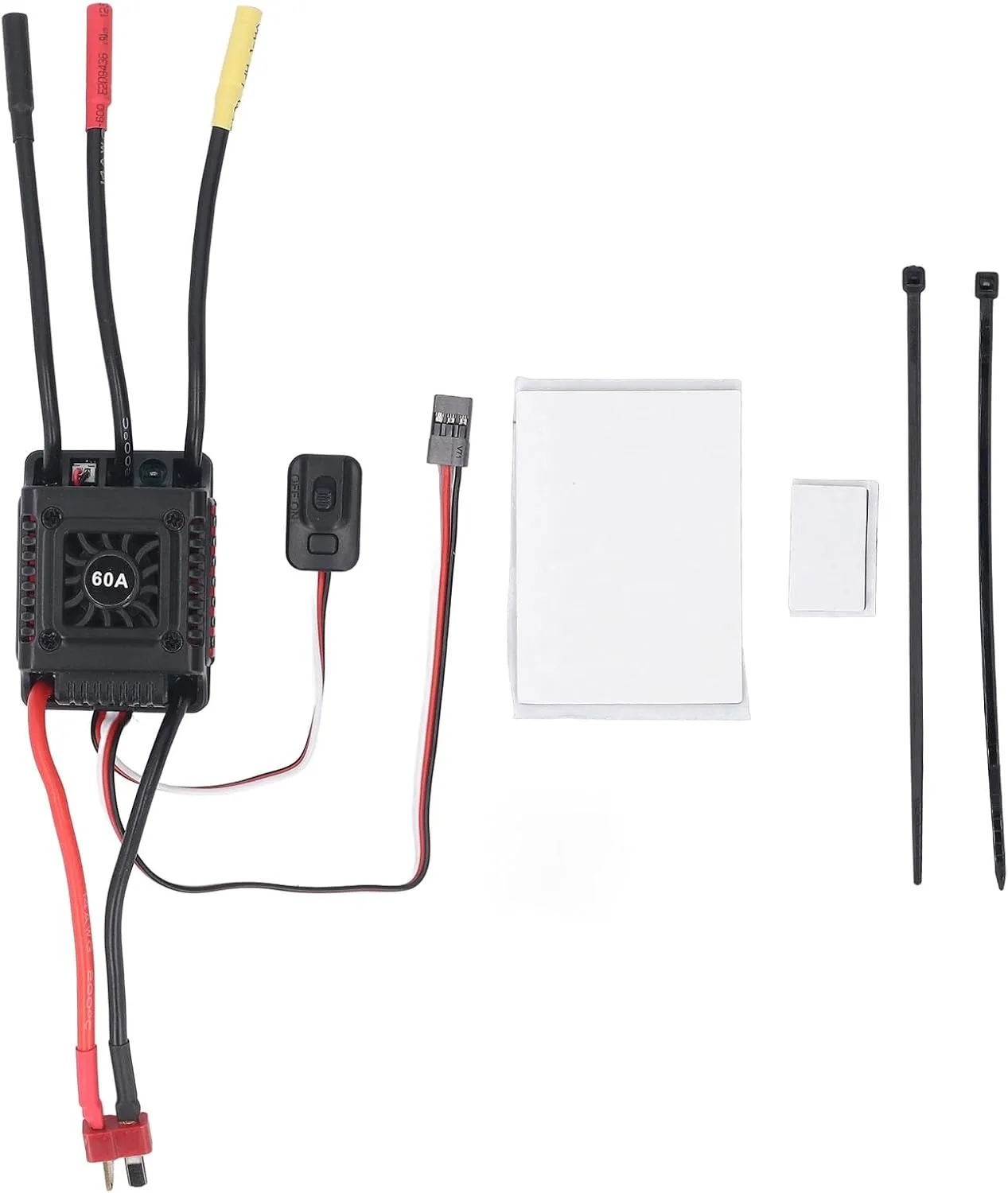

Package List
1 x ESC
2 x Mounting Tapes
2 x Cable Ties
1 x Manual
