- Recommended main blade size 580mm. (550mm - 610mm possible). Tail blade size 86 - 95 mm. Supersonic canopy mounts included in kit. ( Backside ) Semi Fusion edition design included in kit. ( frame and tail fin stickers )
- Wide battery compartment with quick lock and release system. (Same as Tron 5.5.) Light, yet very stiff and robust. Dry weight= 1530 grams without blades and electronics. Full-size tail servo.
- Mini or full-size cyclic servo option. (Adapters included in kit) Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train. Compatible with a wide range of motor sizes. 4020, 4025 or 4225 series. From 1000KV-1350KV for 6s and 560KV for 12S ( 6mm shaft diameter with min 15mm lenght required )
- 16T/6mm motor pinion included. (13,14,15,17T optional available) POM-CNC machined main gear 137T / mod 0.9 which provides very efficient operation. 3th bearing support for main shaft.
- Heavy duty one way bearing and hub design. Innovative FBL tray. ( Adjustable dampening hardness) Octa boom design with oval side shapes, no boom supports needed. Capable to use a wide range of lipo batteries. 6,8,10 or 12S. ( 6S-5000mAh to 5500mAh recommended or 12S- 3300mAh stick pack )

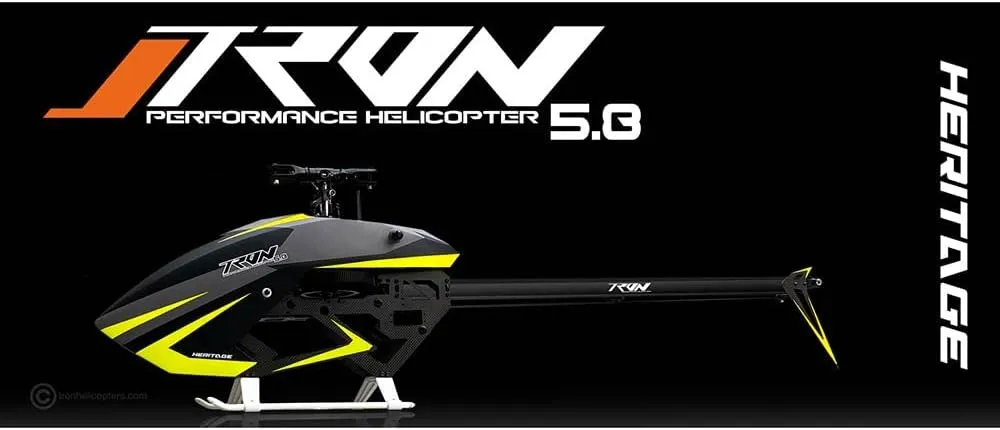

Tron 5.8 HERITAGE. Helicopter Kit, without blades and electronics.
Recommended main blade size 580mm. (550mm - 610mm possible). Tail blade size 86 - 95 mm.
Supersonic canopy mounts included in kit. ( Backside )
Semi Fusion edition design included in kit. ( frame and tail fin stickers )
Wide battery compartment with quick lock and release system. (Same as Tron 5.5.)
Light, yet very stiff and robust.
Dry weight= 1530 grams without blades and electronics.
Full-size tail servo.
Mini or full-size cyclic servo option. (Adapters included in kit)
Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.
Compatible with a wide range of motor sizes. 4020, 4025 or 4225 series. From 1000KV-1350KV for 6s and 560KV for 12S ( 6mm shaft diameter with min 15mm lenght required )
16T/6mm motor pinion included. (13,14,15,17T optional available)
POM-CNC machined main gear 137T / mod 0.9 which provides very efficient operation.
3th bearing support for main shaft.
Heavy duty one way bearing and hub design.
Innovative FBL tray. ( Adjustable dampening hardness)
Octa boom design with oval side shapes, no boom supports needed.
Capable to use a wide range of lipo batteries. 6,8,10 or 12S. ( 6S-5000mAh to 5500mAh recommended or 12S- 3300mAh stick pack )
Perfectly thought-out servo layout in conjunction with the FBL system and ESC. Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.
High visibility canopy for perfect orientation in flight. 2 option available.
Sustainably produced.
Features at a Glance:
Optimized servo and rotorhead geometry
Accepts full size & mini size cyclic servos
Adjustable dampened gyro mounting tray
Bearing supported motor pinion system
Octo boom without boom supports
High visibility canopy & fusion style decals
Supersonic rear canopy mounts
Specifications:
Main Blade Length: 580-610mm
Tail Blade Length: 85-96mm
Motor Drive Gear: 16T
Main Drive Gear: 137T
Autorotation Tail Drive Gear: 80T
Tail Drive Gear: 19T
Drive Gear Ratio: 8.563:1:4.21
Weight (Airframe Only): 1530g
Needed to Complete:
(1) 2.4GHz Transmitter & Receiver (6-channel or more, helicopter system)
(1) 580-610mm Main Blades
(1) 85-96mm Tail Blades
(1) 4020-4225 Size Brushless Motor (kV dependent on battery choice)
(3) Full size or Mini cyclic servos
(1) Full size tail servo
(1) 3-Axis Flybarless System
(1) ESC (120A )
(1 ) Batteries:
6s: 5000 - 5500mAh
7s: 4500 - 5500mAh
8s: 4000 - 5000mAh
12s: 3000-3500mAh
Compatible charger
Pitch gauge
Various tools, lubes & greases for setup and assembly
